Thông tin chi tiết sản phẩm:
|
| Vật liệu thép: | Q235B, Q355B hoặc yêu cầu của người mua, như: ASTM, BSEN, DIN, IPE, AISI, JIS | Ứng dụng: | Căn hộ, khách sạn, ký túc xá, văn phòng nhiều tầng |
|---|---|---|---|
| Xử lý bề mặt: | Vẽ tranh hoặc mạ kẽm nóng | Phạm vi làm việc: | Thiết kế, chế tạo, cài đặt |
| Làm nổi bật: | Multi Story Steel Apartment Building,Prefabricated Multi Story Apartment Building,Multi Story Frame Steel Apartment Building |
||

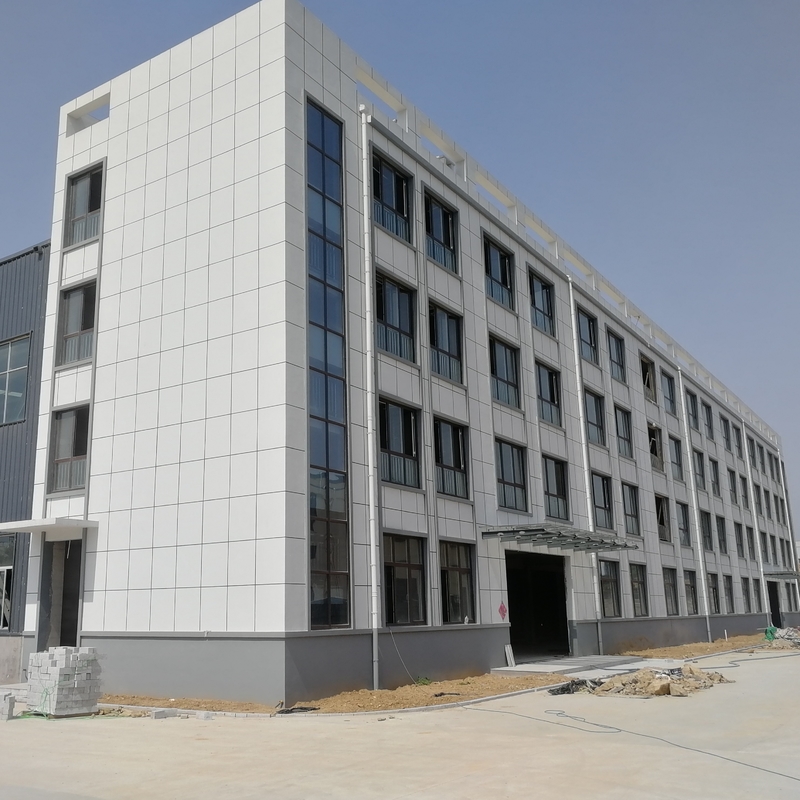

This prefabricated steel frame apartment building is designed to support residential projects that need reliable and efficient housing solutions. It can be used for urban housing developments, rental complexes, student accommodations, or worker dormitories where speed of construction and consistent quality matter.

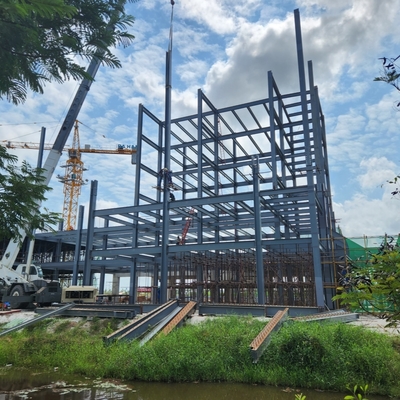

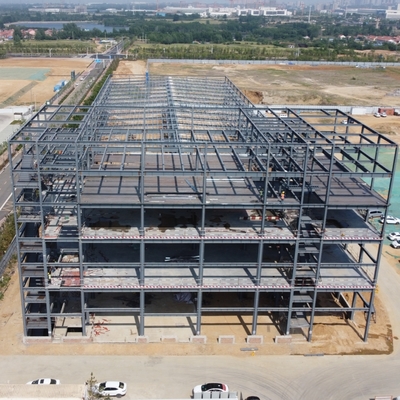

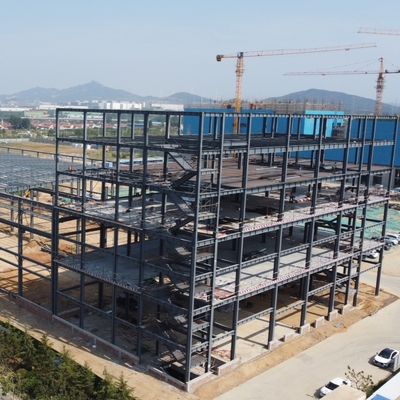

The structure uses a steel frame system that provides good strength and stability. The design allows for multiple floors and various unit layouts, making it adaptable to different space requirements and family sizes.
All main components are made in a factory and shipped ready for on site assembly. There is no need for on site welding — connections are bolted, which helps reduce construction time and labor costs. This also makes it easier to build in areas with limited skilled workers or tight project timelines.
The building comes with basic wall, roof and floor panels that offer thermal and weather protection. Windows, doors and utility points can be pre installed or marked for on site finishing. You can add insulation, cladding or interior finishes to match local climate and aesthetic preferences.
It is not a luxury high rise, but a sensible solution for developers, governments or housing providers who need to deliver functional, durable homes without long construction periods. The focus is on practical design, ease of setup, and long term usability.
This type of apartment building works well in both urban and semi urban settings, especially where land is limited and demand for housing is rising. It’s built to support real living needs with a balance of cost, quality and speed.
| Item name | Specification | Material Parameter | Technical Treatment |
|---|---|---|---|
| Column | H shape,Box,steel pipe,Hot-rolled sheet | Q235B,Q355B | Paint or Hot-dip galvanized |
| Beam | H shape,steel Truss,Hot-rolled sheet | Q235B,Q355B | Paint or Hot-dip galvanized |
| Bracing | Tie rod,Casing pipe,Angle steel | Q235B,Q355B | |
| Purling | C / Z shape, purling Thickness:1.8mm~3.0mm | Q235B,Q355B | Hot-dip galvanized |
| Wall & roof panel | EPS / PU / PIR / Glass wool / Rock wool Sandwich panel or Single plate. | Steel T=0.426~0.8mm,insulation T=50~150mm | Alu-zinc 150g, Fluorocarbon paint |
| Door | Sliding or rolling door | Steel or Aluminum sheet,T=1.0~1.5mm | Paint or Hot-dip galvanized |
| Window | Alloy-Glass,Aluminium alloy-shutter, Louvers | T=1.0~2.0mm | Alloy |
| Skylighting panel | FRP, T=1.5mm or T=1.8mm | Coefficient of thermal expansion:2.2x10-5/cm/cm/℃ | Light transmittance 85% |
| Ventilator | Turbine ventilator, and electric type | Steel,stainless steel,PC | Paint or Hot-dip galvanized,304 |
| Gutter | Galvanized or stainless steel plate | T=2.0mm | Hot-dip galvanized,304 |
| Bolt | Ordinary, high strength | 10.9S,4.8s | Hot-dip galvanized |
| Anchor bolt | Steel rod M24,M27 M30 | Q235B |
Our prefabricated steel structure sports complexes are flat-packed for efficient shipping. All components are labeled clearly and packaged securely to minimize damage during transit. We optimize container loading to reduce shipping costs and ensure timely delivery worldwide. Comprehensive packing lists and installation manuals are included with every shipment.
